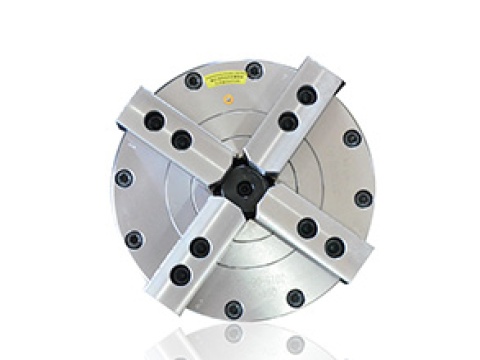

Цельный пневматический патрон с 4 кулачками QS4 (встроенный)
К сравнению
Характеристики
Основные характеристики
Описание
| Performance parameters | ||||||||
| Model/Spec. | Jaw stroke (diameter)(mm) | Maximun static clamping force (Kgf) | Maximum static holding force (Kgf) | Permissible pressure (Mpa) | Limit speed (r/min) | Clamping range | Holding range | Net weight (kg) |
| QS4-05" | 3.7 | 2856 | 1836 | 0.4-0.8 | 4000 | 10-140 | 25-140 | 12 |
| QS4-06" | 4.2 | 4896 | 2652 | 0.4-0.8 | 3600 | 15-180 | 30-180 | 14 |
| QS4-08" | 5 | 7140 | 4284 | 0.4-0.8 | 3300 | 20-220 | 40-240 | 24 |
| QS4-10" | 6.5 | 9282 | 6120 | 0.4-0.8 | 3000 | 30-260 | 50-280 | 37 |
| QS4-12" | 8.5 | 14076 | 9486 | 0.4-0.8 | 2500 | 40-350 | 60-360 | 72 |
| QS4-15" | 12 | 19788 | 15096 | 0.4-0.8 | 2000 | 60-420 | 80-440 | 122 |
| Size parameters | ||||||||

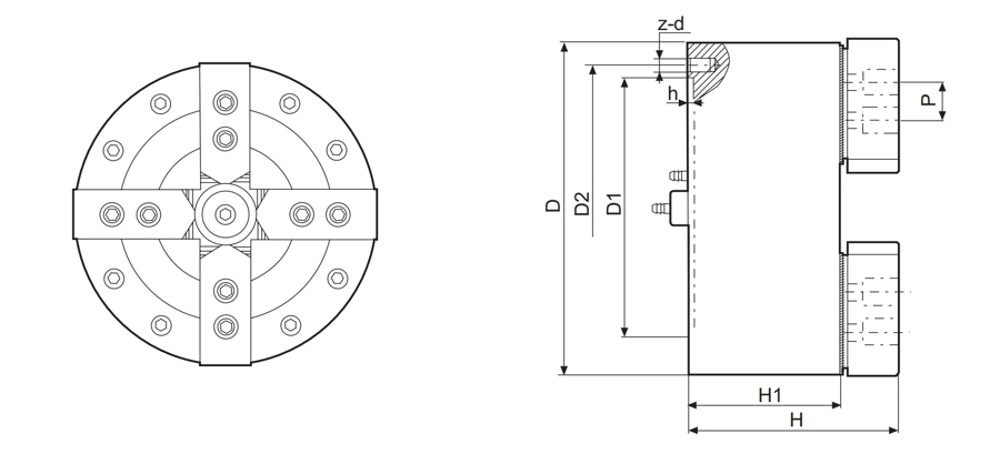

| Model/Spec. | D | D1 | D2 | H | H1 | h | p | Z-d |
| QS4-05" | 135 | 95 | 108 | 118 | 85 | 4 | 18 | 3-M8 |
| QS4-06" | 180 | 130 | 142 | 130 | 93 | 4 | 20 | 3-M8 |
| QS4-08" | 208 | 165 | 180 | 136 | 98 | 5 | 25 | 3-M10 |
| QS4-10" | 252 | 206 | 226 | 143 | 100 | 5 | 30 | 3-M12 |
| QS4-12" | 322 | 270 | 290 | 160 | 115 | 6 | 30 | 6-M12 |
| QS4-15" | 400 | 340 | 368 | 168 | 118 | 6 | 43 | 6-M16 |
