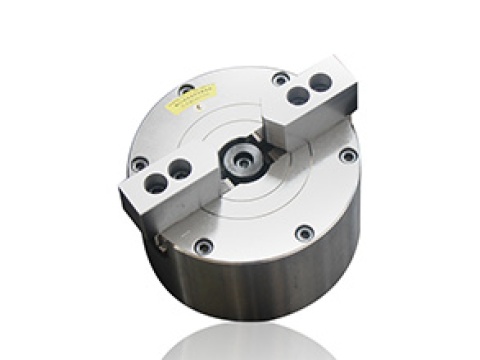

Цельнолитой пневматический 2-х кулачковый патрон QS2 (встроенный)
К сравнению
Характеристики
Основные характеристики
Описание
| Model/Spec. | Jaw stroke (diameter) | Maximum static clamping force KN(Kgf) | Maximum static holding force KN(Kgf) | Permissible pressure (Mpa) | Limit speed r/min | Clamping range | Holding range | Net weight (kg) |
| QS2-04" | 3.2 | 2040 | 1170 | 0.4-0.8 | 4500 | 2-120 | 15-120 | 4.8 |
| QS2-05" | 3.7 | 2856 | 1836 | 0.4-0.8 | 4000 | 3-140 | 15-140 | 7.6 |
| QS2-06" | 4.2 | 4896 | 2652 | 0.4-0.8 | 3600 | 4-180 | 20-180 | 13 |
| QS2-08" | 5 | 7140 | 4284 | 0.4-0.8 | 3300 | 5-215 | 20-240 | 21 |
| QS2-10" | 6.5 | 9282 | 6120 | 0.4-0.8 | 3000 | 10-260 | 30-280 | 33 |
| QS2-12" | 8.5 | 14076 | 9486 | 0.4-0.8 | 2500 | 10-350 | 40-360 | 66.5 |
| QS2-15" | 12 | 19788 | 15096 | 0.4-0.8 | 2000 | 20-420 | 60-400 | 112 |

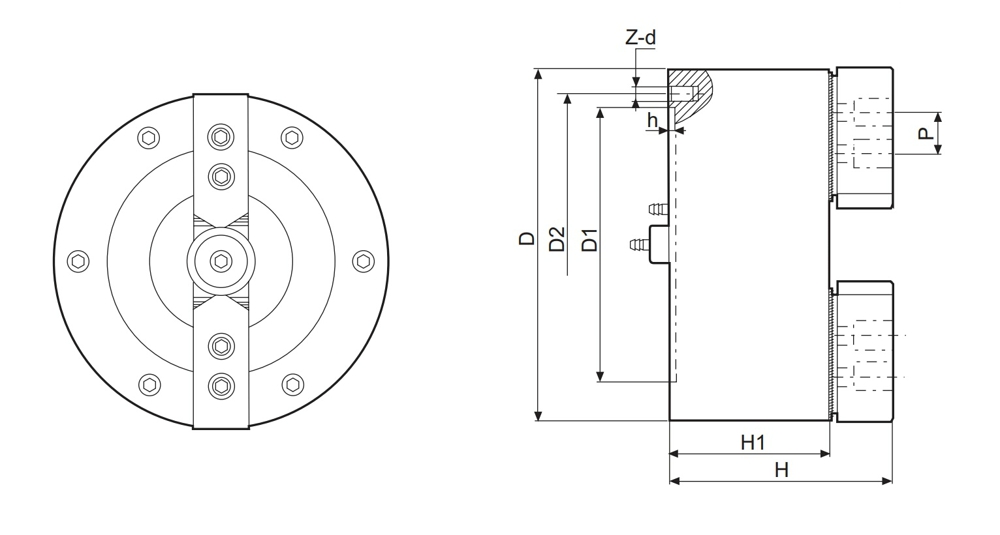

| Model/Spec. | D | D1 | D2 | H | H1 | h | p | z-d |
| QS2-04" | 115 | 72 | 100 | 96 | 72 | 3 | 16 | 3-M8 |
| QS2-05" | 135 | 95 | 108 | 118 | 85 | 4 | 18 | 3-M8 |
| QS2-06" | 172 | 130 | 142 | 130 | 93 | 4 | 20 | 3-M8 |
| QS2-08" | 208 | 165 | 180 | 136 | 98 | 5 | 25 | 3-M10 |
| QS2-10" | 252 | 206 | 226 | 143 | 100 | 5 | 30 | 3-M12 |
| QS2-12" | 322 | 270 | 290 | 160 | 115 | 6 | 30 | 6-M12 |
| QS2-15" | 400 | 340 | 368 | 168 | 118 | 6 | 43 | 6-M16 |
