Характеристики
Основные характеристики
Описание
| Data Model | Center height (mm) | Station number | Repeatability accuracy(") | Time of adjacent tool changing(s) | Motor power of turret(Kw) | Max.torque of cutting for power head(N·m) | Rated speed of power speed(rpm) | Hydraulic pressure(Mpa) | Flow(L/min) | |
| HAK33063 | 63 | 8 | 0.25 | 0.75 | 14 | 4500 | 2.2～3 | 10 | ||
| HAK33080 | 80 | 8 | 12 | ±1.6 | 0.25 | 1.5 | 19 | 4500 | 2.5～3 | 10 |
| HAK33100 | 100 | 8 | 12 | ±1.6 | 0.3 | 2 | 28 | 4500 | 2.5～3 | 15 |

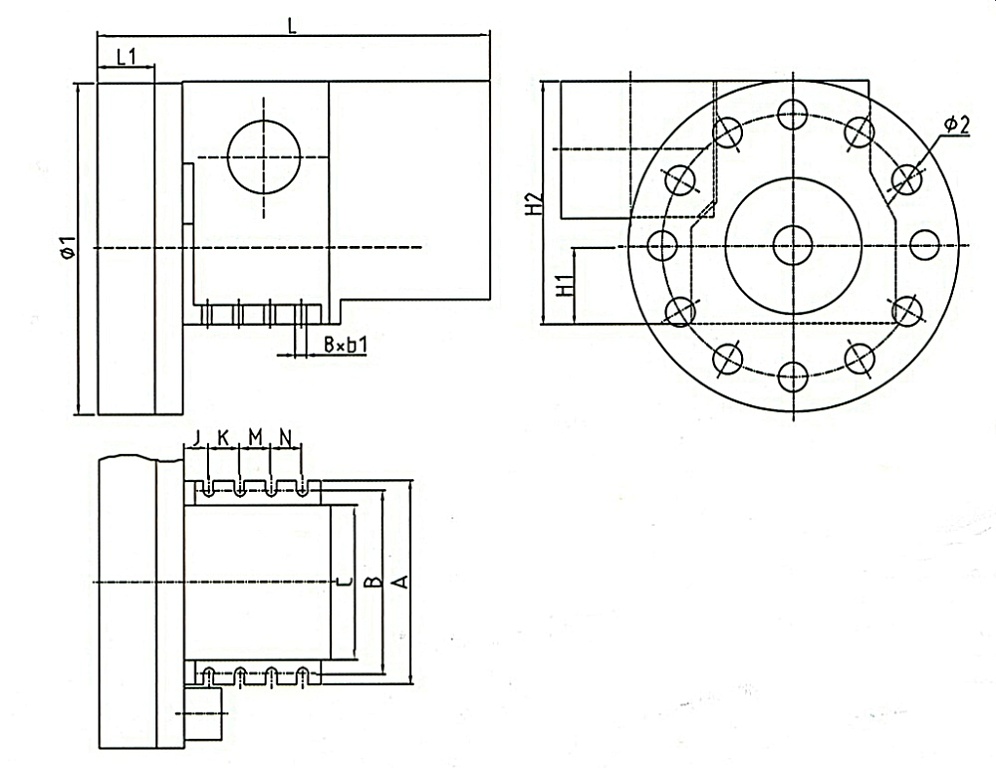

| Dim Model | A | B | C | H1 | H2 | b1 | J | K | M | N | φ1 | φ2 | L1 | L |
| HAK33063 | 190 | 168 | 143 | 63 | 230 | 11 | 25 | 30 | 30 | 30 | φ295 | φ20 | 43 | 430 |
| HAK33080 | 210 | 188 | 158 | 80 | 250 | 11 | 25 | 32 | 32 | 32 | φ340 | φ30 | 56 | 496 |
| HAK33100 | 238 | 213 | 180 | 100 | 300 | 13 | 32 | 40 | 30 | 30 | φ410 | φ40 | 65 | 540 |
