Характеристики
Основные характеристики
Описание
| Data Model | Center height (mm) | Station number | Max.tangential torque(N·m) |
Hydraulic pressure(Mpa) |
Repeatability accuracy(") | Time of changing tool and lock(s) | |||
| 30º | 45º | 180º | |||||||
| HAK37080 | 80 | 8 | 12 | 1600 | 4～4.5 | ±1.6 | 0.2 | 0.3 | 0.55 |
| HAK37100 | 100 | 8 | 12 | 2200 | 4～4.5 | ±1.6 | 0.25 | 0.35 | 0.6 |

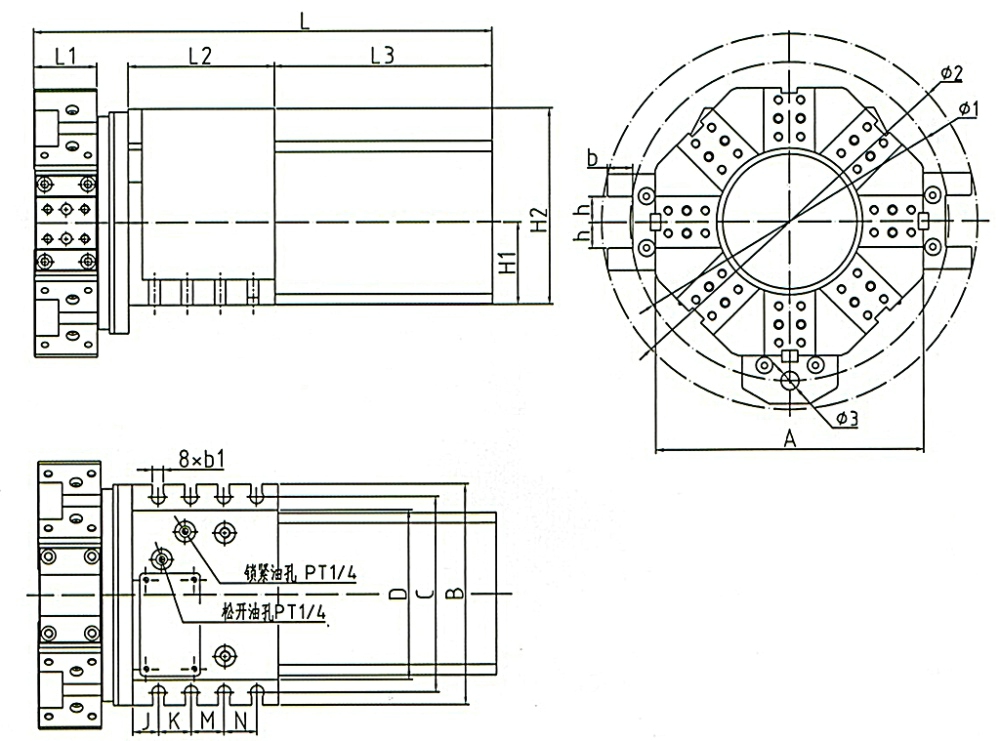

| Dim Model | A | B | C | D | H1 | H2 | b1 | b | h | L | L1 | L2 | L3 | J | K | M | N | φ1 | φ2 | φ3 |
| HAK37080 | 260 | 215 | 190 | 165 | 80 | 190.5 | 11 | 25 | 25 | 445.5 | 76 | 142 | 212 | 25 | 32 | 32 | 32 | φ310 | φ370 | φ32 |
| HAK37100 | 300 | 255 | 220 | 200 | 100 | 227.5 | 13 | 25 | 25 | 547 | 90 | 155 | 260 | 32 | 40 | 30 | 30 | φ360 | φ420 | φ32 |
