Характеристики
Основные характеристики
Описание
| Data Model | Motor power(W) | Motor Force（r/min） | Locking Force(kN) | Repeatability accuracy(") | Time of changing tool and lock(s) |
| 60º | |||||
| LD6-CK6132 | 120 | 1400 | 12 | ±2 | 2 |
| LD6-CK6140 | 120 | 1400 | 14 | ±2 | 2 |
| LD6-CK6163 | 180 | 980 | 24 | ±2 | 3.8 |

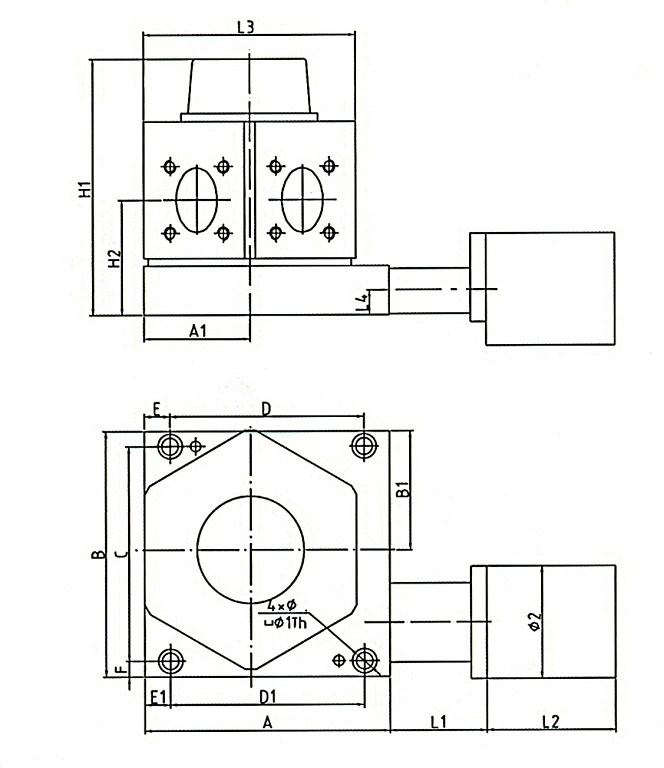

| Dim Model | A | A1 | B | B1 | C | D | D1 | E | E1 | F | H1 | H2 | L1 | L2 | L3 | L4 | φ | φ1 | φ2 | h |
| LD6-CK6132 | 161 | 76 | 171 | 76 | 146 | 126 | 126 | 12 | 12 | 12 | 174 | 90 | 76 | 128 | 152 | 20 | φ13 | φ19 | φ88 | 13 |
| LD6-CK6140 | 192 | 81 | 192 | 93 | 168 | 152 | 152 | 20 | 20 | 12 | 190 | 106 | 76 | 128 | 162 | 23 | φ13 | φ19 | φ88 | 13 |
| LD6-CK6163 | 200 | 100 | 200 | 100 | 177 | 150 | 130 | 25 | 35 | 11.5 | 270 | 145 | 110 | 140 | 200 | 40 | φ13 | φ19 | φ98 | 13 |
