Характеристики
Основные характеристики
Описание
| Data Model | Center height(mm) | Station number | Motor power(W) | Max.tangential torque(N·m) | Repeatability accuracy(") | Time of changing tool and lock(s) | ||
| 45º | 60º | |||||||
| HAK34-CK6132 | 78 | 6 | 8 | 120 | 1200 | ±2 | 2.8 | 3 |
| HAK34-CK6140 | 78 | 6 | 8 | 120 | 1200 | ±2 | 2.8 | 3 |
| HAK34-CK6163 | 136 | 6 | 8 | 4N.m | 2000 | ±2 | 3.2 | 3.6 |

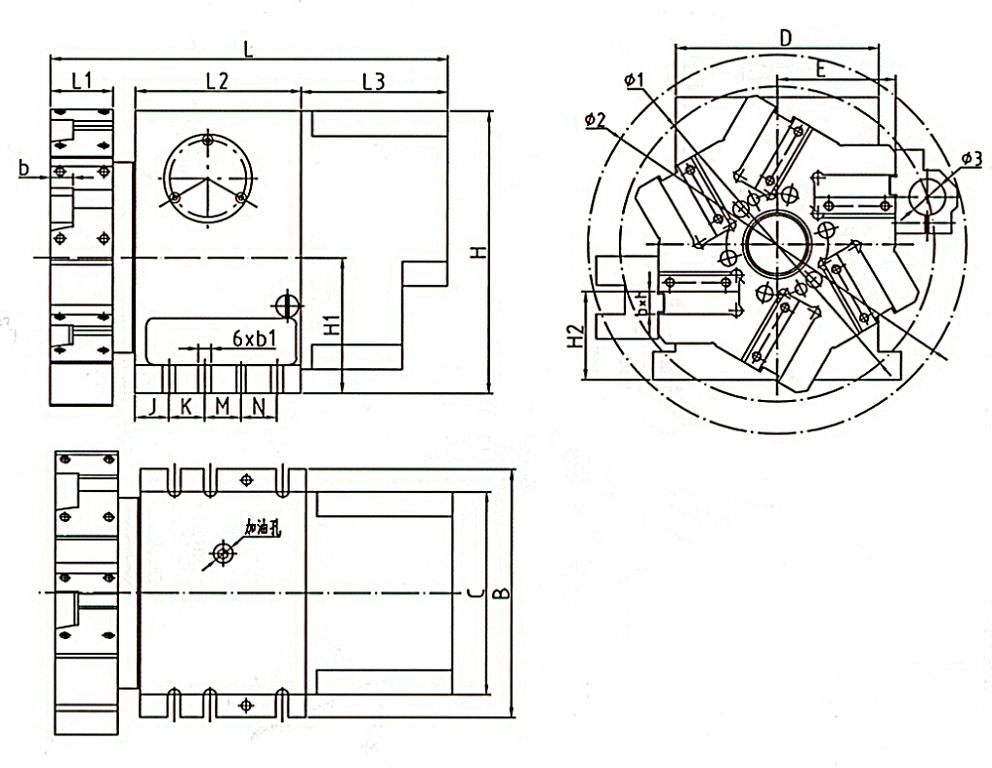

| Dim Model | B | C | D | E | H1 | H2 | H | L1 | L2 | L3 | L | J | K | M | N | b1 | b | h | φ1 | φ2 | φ3 |
| HAK34-CK6132 | 220 | 182 | 180 | 105 | 120 | 78 | 250 | 55 | 147 | 130 | 352 | 30 | 32 | 32 | 32 | 11 | 20 | 20 | φ273 | φ345 | φ32 |
| HAK34-CK6140 | 220 | 182 | 180 | 105 | 120 | 78 | 250 | 55 | 147 | 130 | 352 | 30 | 32 | 32 | 32 | 11 | 20 | 25 | φ283 | φ355 | φ32 |
| HAK34-CK6163 | 240 | 220 | 200 | 130 | 130 | 136 | 280 | 72 | 164 | 140 | 390 | 25 | 40 | 30 | 30 | 13 | 32 | 32 | φ312 | φ380 | φ40 |
