Характеристики
Основные характеристики
Описание
| Data Model | Working pressure (Mpa) | Flow (L/min) | Center height (mm) | Station number | Repeatability accuracy(") | Time of changing tool(s) | ||
| 30º | 45º | |||||||
| HAK32063 | 3～3.5 | 10 | 63 | 8 | 12 | ±2 | 0.25 | 0.3 |
| HAK32080 | 3～3.5 | 10 | 80 | 8 | 12 | ±2 | 0.25 | 0.3 |
| HAK32100 | 3～3.5 | 15 | 100 | 8 | 12 | ±2 | 0.3 | 0.4 |
| HAK32125 | 3.5～4 | 15 | 125 | 8 | 12 | ±2 | 0.35 | 0.5 |
| HAK32160 | 3.5～4 | 15 | 160 | 8 | 12 | ±2 | 0.4 | 0.55 |

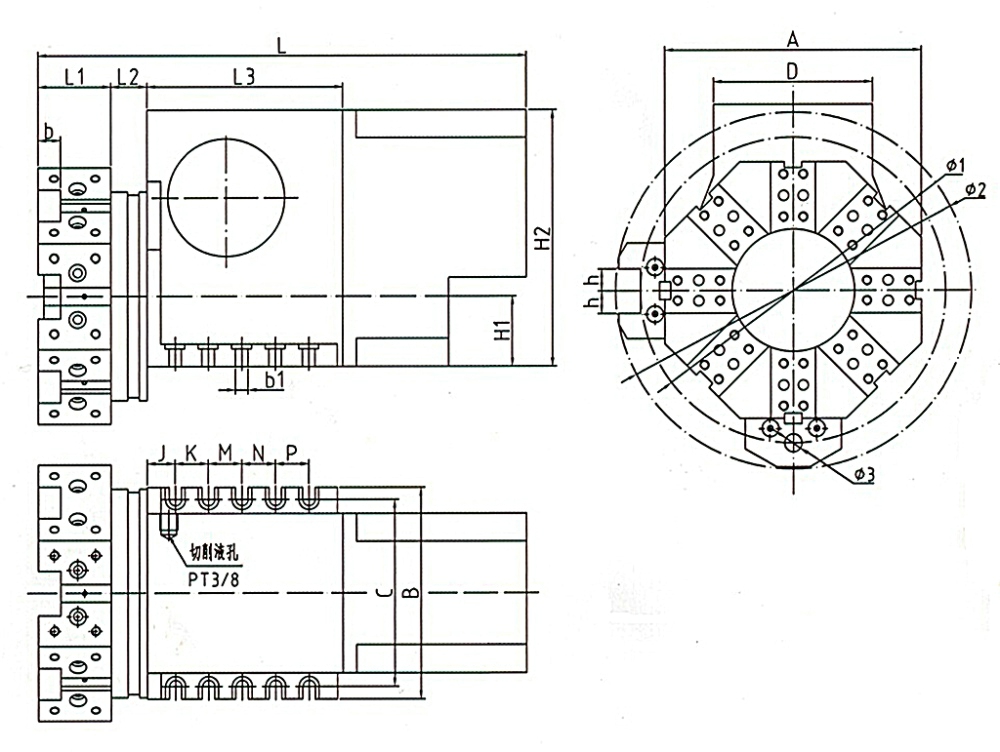

| Dim Model | A | B | C | D | H1 | H2 | b1 | b | h | L | L1 | L2 | L3 | J | K | M | N | P | φ1 | φ2 | φ3 |
| HAK32063 | 230 | 190 | 168 | 143 | 63 | 230 | 11 | 20 | 20 | 468 | 55 | 31 | 176 | 25 | 30 | 30 | 30 | / | φ286 | φ338 | φ25 |
| HAK32080 | 260 | 210 | 188 | 158 | 80 | 250 | 11 | 25 | 25 | 482 | 62 | 36 | 176 | 25 | 32 | 32 | 32 | / | φ310 | φ366 | φ32 |
| HAK32100 | 300 | 238 | 213 | 180 | 100 | 300 | 13 | 25 | 25 | 542 | 80 | 40 | 195 | 32 | 40 | 30 | 30 | / | φ360 | φ420 | φ32 |
| HAK32125 | 380 | 308 | 280 | 238 | 125 | 345 | 18 | 32 | 32 | 611 | 90 | 51 | 220 | 32 | 44 | 43 | 43 | / | φ460 | φ530 | φ40 |
| HAK32160 | 480 | 390 | 352 | 316 | 160 | 450 | 22 | 40 | 40 | 822 | 120 | 72 | 330 | 48 | 48 | 56 | 48 | 48 | φ580 | φ660 | φ50 |
