Характеристики
Основные характеристики
Описание
| Max.tangential torque(N·m) | Repeatability accuracy(") | Time of changing tool and lock(s) | |
| 45º | 60º | ||
| 850 | ±2 | 2.6 | 2.8 |
| 1200 | ±2 | 2.8 | 3 |
| 2000 | ±2 | 3.6 | 3.8 |
| 3000 | ±2 | 4 | 4.2 |
| 4600 | ±2 | 4.3 | 4.5 |

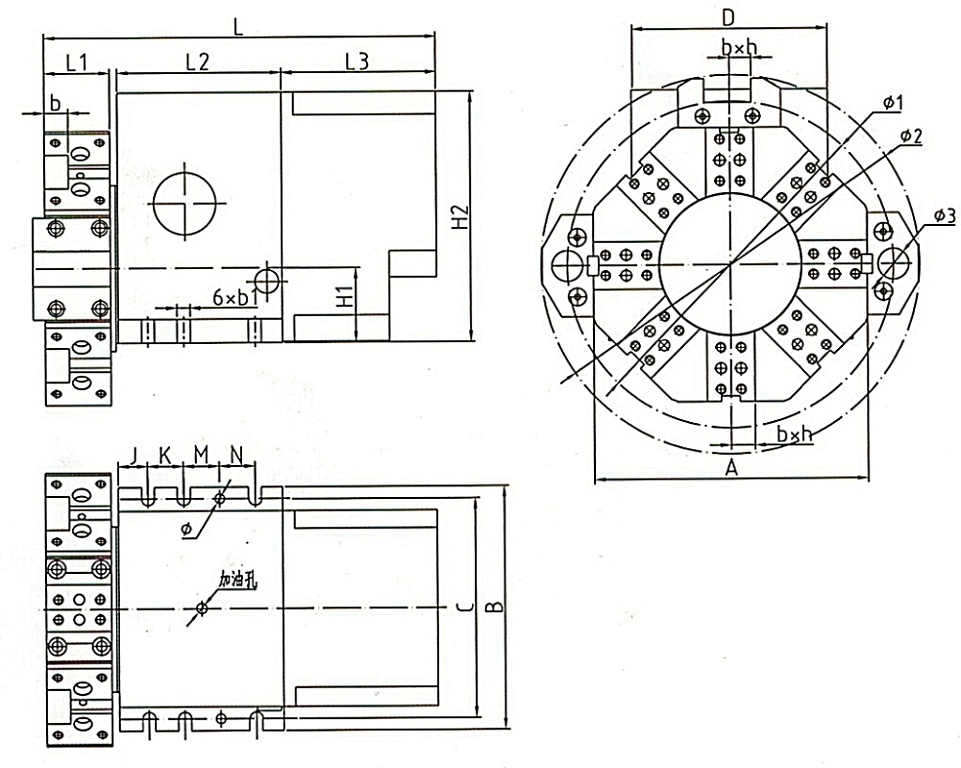

| D | H1 | H2 | b1 | b | h | L | L1 | L2 | L3 | J | K | M | N | φ | φ1 | φ2 | φ3 |
| 165 | 63 | 210 | 11 | 20 | 20 | 329 | 55 | 138 | 130 | 25 | 30 | 30 | 30 | φ8 | φ274 | φ318 | φ25 |
| 180 | 80 | 230 | 11 | 25 | 25 | 350 | 60 | 147 | 130 | 32 | 32 | 32 | 32 | φ8 | φ310 | φ366 | φ25 |
| 200 | 100 | 260 | 13 | 25 | 25 | 384 | 72 | 164 | 140 | 25 | 40 | 30 | 30 | φ10 | φ360 | φ420 | φ32 |
| 230 | 120 | 300 | 18 | 32 | 32 | 459 | 85 | 204 | 150 | 32 | 44 | 43 | 43 | φ12 | φ420 | φ492 | φ40 |
| 306 | 160 | 380 | 22 | 40 | 40 | 564 | 115 | 265 | 160 | 40 | 48 | 56 | 48 | φ22 | φ560 | φ640 | φ50 |
