Характеристики
Основные характеристики
Описание
| ta Model | Center height (mm) | Station number | Max.tangential torque(N·m) | Repeatability accuracy(") | Time of adjacent tool changing and lock(s) | ||
| 45º | 60º | ||||||
| HAK30050 | 50 | 6 | 8 | 800 | ±2 | 2.6 | 2.7 |
| HAK30063 | 63 | 6 | 8 | 1100 | ±2 | 2.6 | 2.8 |
| HAK30080 | 80 | 6 | 8 | 1500 | ±2 | 2.8 | 3 |
| HAK30100 | 100 | 6 | 8 | 2400 | ±2 | 3.6 | 3.8 |
| HAK30125 | 125 | 6 | 8 | 3500 | ±2 | 3.6 | 3.8 |

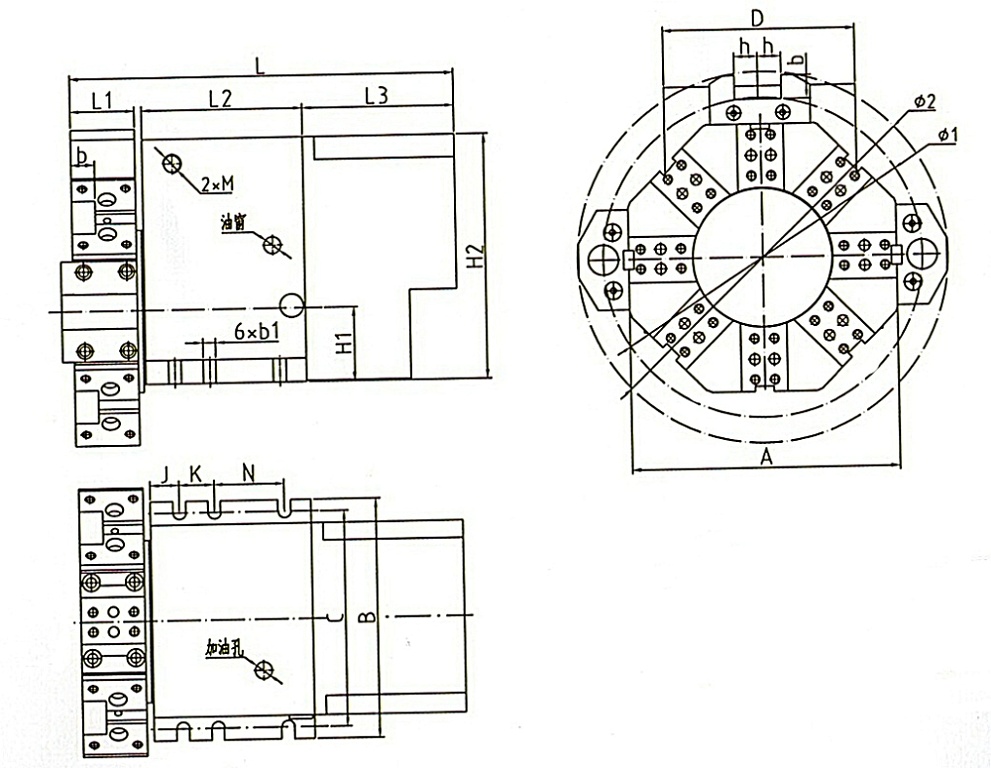

| Dim Model | A | B | C | D | H1 | H2 | b1 | b | h | L | L1 | L2 | L3 | J | K | M | N | φ | φ1 | φ2 |
| HAK30050 | 180 | 172 | 155 | 140 | 50 | 170 | 9 | 16 | 16 | 288 | 45 | 110 | 108 | 16 | 25 | G3/8" | 44 | φ30 | φ216 | φ261 |
| HAK30063 | 220 | 185 | 166 | 150 | 63 | 190 | 9 | 16/20 | 16/20 | 338 | 55 | 145 | 115 | 20 | 30 | G3/8" | 60 | φ30 | φ264 | φ308 |
| HAK30080 | 240 | 210 | 190 | 164 | 80 | 226 | 11 | 20 | 20 | 355 | 60 | 154 | 115 | 32 | 32 | G3/8" | 64 | φ40 | φ300 | φ352 |
| HAK30100 | 280 | 250 | 220 | 190 | 100 | 260 | 13 | 25 | 25 | 420 | 72 | 190 | 130 | 25 | 40 | G3/8" | 100 | φ50 | φ340 | φ400 |
| HAK30125 | 350 | 280 | 250 | 220 | 125 | 290 | 17 | 32 | 32 | 469 | 85 | 210 | 134 | 30 | 44 | G3/8" | 125 | φ63 | φ430 | φ502 |
