Характеристики
Основные характеристики
Описание
| Performance parameters | ||||
| Model/Spec. | Permissible pressure (Mpa) | Jaw stroke (diameter)(mm) | Max.static clamping force (kgf) | Max.rotating speed (r/min) |
| QZ3-06" | 0.4-0.8 | 4 | 42 | 2500 |
| QZ3-08" | 0.4-0.8 | 5 | 56 | 2000 |
| QZ3-10" | 0.4-0.8 | 6 | 75 | 1600 |
| QZ3-12" | 0.4-0.8 | 8 | 92 | 1300 |

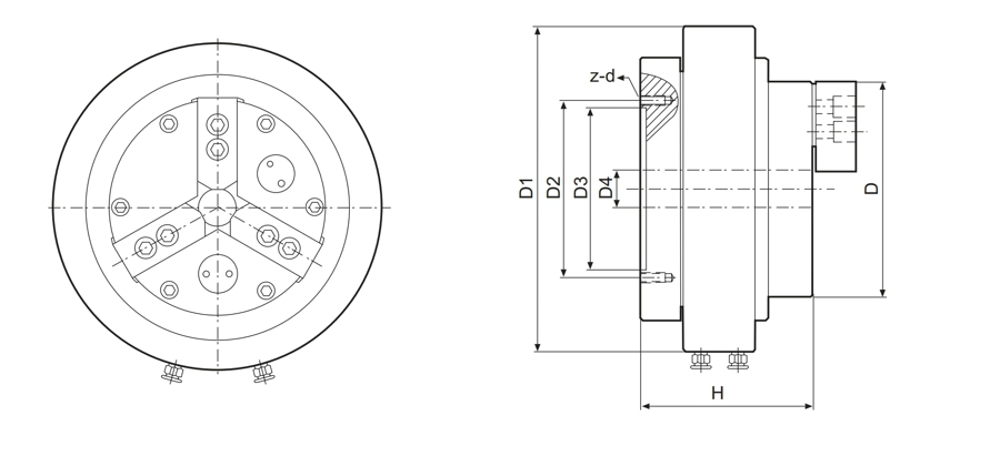

| Size parametera | ||||||||
| Model/Spec. | D | D1 | D2 | D3 | D4 | H | h | Z-d |
| QZ3-06" | 175 | 248 | 142 | 130 | 36 | 105 | 4 | 6-M8 |
| QZ3-08" | 210 | 298 | 180 | 165 | 52 | 126 | 5 | 6-M10 |
| QZ3-10" | 250 | 368 | 226 | 206 | 75 | 128 | 6 | 6-M12 |
| QZ3-12" | 320 | 408 | 290 | 270 | 110 | 136 | 6 | 6-M12 |
