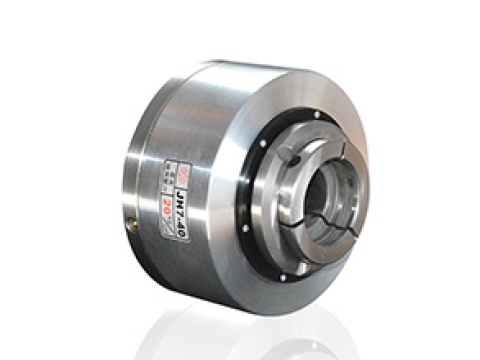

Гидравлический быстрозажимной патрон JH ротационного типа
К сравнению
Характеристики
Основные характеристики
Описание
| Performance parameters | |||||||
| Model/Spec. |
Working pressure (kg/cm²) |
Limit speed (rpm) |
Clamping torque (kg-m) |
Clamping stroke (mm) |
Through-hole aperture | Max. chuck diameter |
Net weight (kg) |
| JH5-25'' | 10～25 | 1800 | 7 | 1.5 | Ф26 | Ф32 | 6.9 |
| JH7-40'' | 10～20 | 1600 | 10 | 1.5 | Ф45 | Ф50 | 13.6 |
| JH7-70'' | 10～20 | 1400 | 12 | 1.5 | Ф68 | Ф90 | 21 |
| JH9-90'' | 10～20 | 1100 | 15 | 1.5 | Ф89 | Ф90 | 23 |
| JH9-120'' | 10～18 | 900 | 18 | 1.5 | Ф120 | Ф132 | 32 |
| Size parameters | ||||||||||
| Model/Spec. | A | B | C | D | E | F | G | H | I | J |
| JH5-25'' | 135 | 100 | 26 | 4 | 105 | 45 | 68 | 138 | 115 | 3-M8 |
| JH7-40'' | 192 | 155 | 46 | 5 | 125 | 65 | 95 | 192 | 172 | 3-M10 |
| JH7-70'' | 192 | 155 | 69 | 5 | 139 | 105 | 126 | 212 | 172 | 3-M10 |
| JH9-90'' | 230 | 190 | 89 | 6 | 110 | 105 | 136 | 232 | 210 | 3-M12 |
| JH9-120'' | 230 | 190 | 120 | 6 | 160 | 140 | 168 | 275 | 210 | 0 |
