Характеристики
Основные характеристики
Описание
| Data Model | Center height (mm) | Station number |
Working pressure (Mpa) |
Flow (L/min) |
Repeatability accuracy(") | Time of adjacent tool changing(s) | |||
| 45º | 180º | ||||||||
| HAK36063 | 63 | 8 | 3～3.5 | 12 | ±2 | 0.6 | 1.6 | ||
| HAK36080 | 80 | 8 | 3～3.5 | 12 | ±2 | 0.6 | 1.6 | ||
| HAK36080A | 80 | 8 | 10 | 12 | 3.5～4 | 20 | ±2 | 0.8 | 1.8/2.2/2.5 |
| HAK36100 | 100 | 8 | 10 | 12 | 3.5～4 | 30 | ±2 | 0.8 | 1.8/2.2/2.5 |
|
|
|
|
|
|
|
|
|
|
|

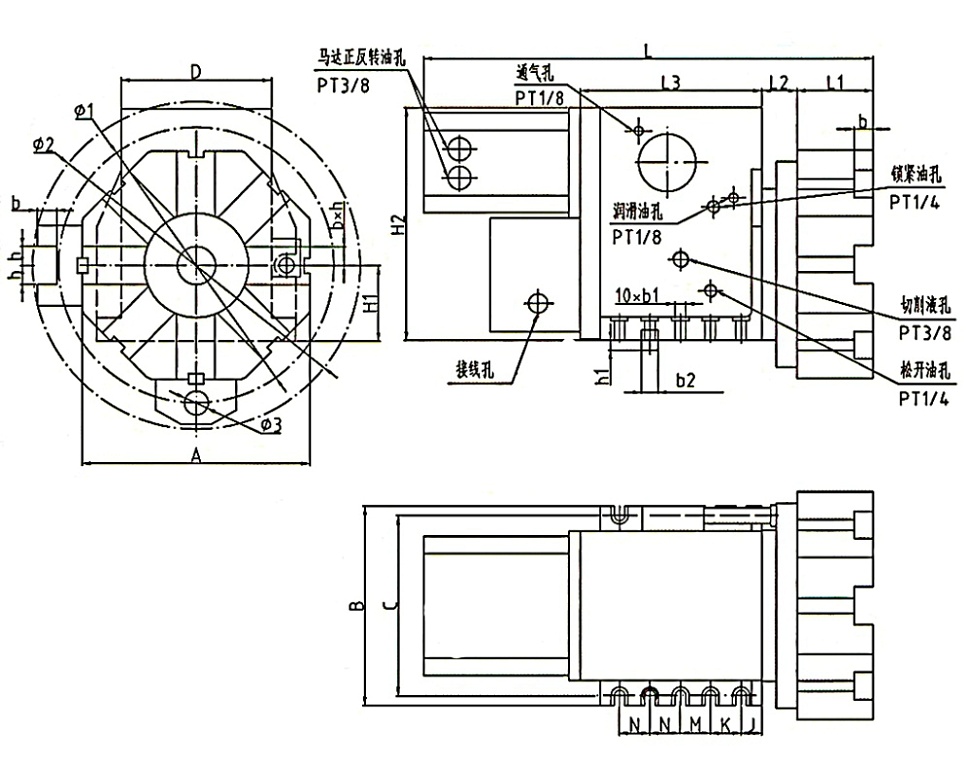

| Dim Model | A | B | C | D | H1 | H2 | b | b1 | b2 | h | h1 |
| HAK36063 | 228 | 185 | 165 | 148 | 63 | 228 | 20 | 11 | 15 | 20 | 10 |
| HAK36080 | 240 | 210 | 190 | 158 | 80 | 245 | 20 | 11 | 17 | 20 | 10 |
| Dim Model | L | L1 | L2 | L3 | J | K | M | N | φ1 | φ2 | φ3 |
| HAK36063 | 443 | 65 | 38 | 175 | 19.5 | 30 | 30 | 30 | φ272 | φ316 | φ25 |
| HAK36080 | 473 | 80 | 37 | 191 | 22 | 32 | 32 | 32 | φ290 | φ345 | φ25 |
